Waterproof Night Vision HD CCD License Plate Light Camera Rear View Backup Camera B22745
Waterproof Night Vision HD CCD License Plate Light Camera Rear View Backup Camera B22745
170 degree visible range works great with the blind spot
Package includes:1 x CCD Car Camera,1x user manual,1 x 6M video cable,1 X power supply cable

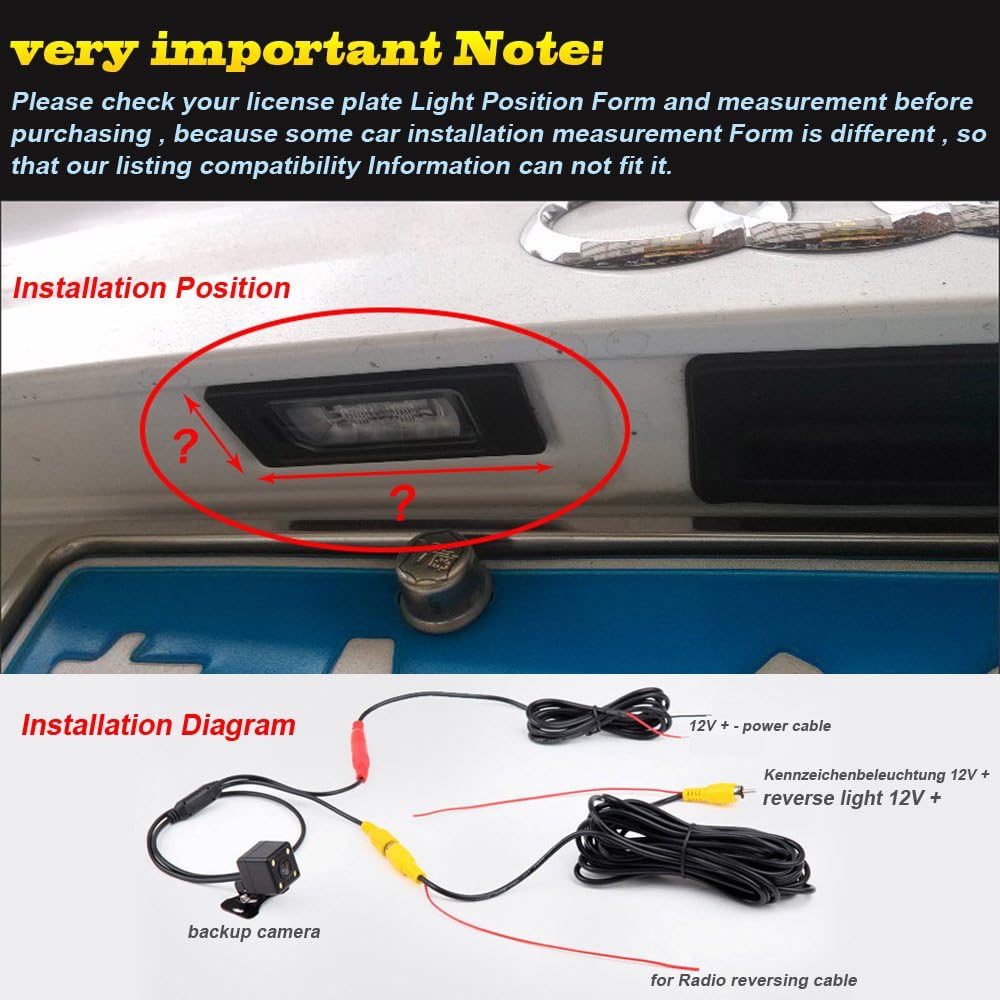

Route the cable from tailgate to front dash, connect to display with universal RCA connector, you may need additional adapter (not included) if to connect factory radio
Remark:This camera do not work well with original factory display/monitor, will work well with aftermarket display/monitor .Please check the dimension for fitting to your number plate light recess before purchasing
This product could fit for all below models as expected:
VW T4 Multivan Transporter Caravelle Business

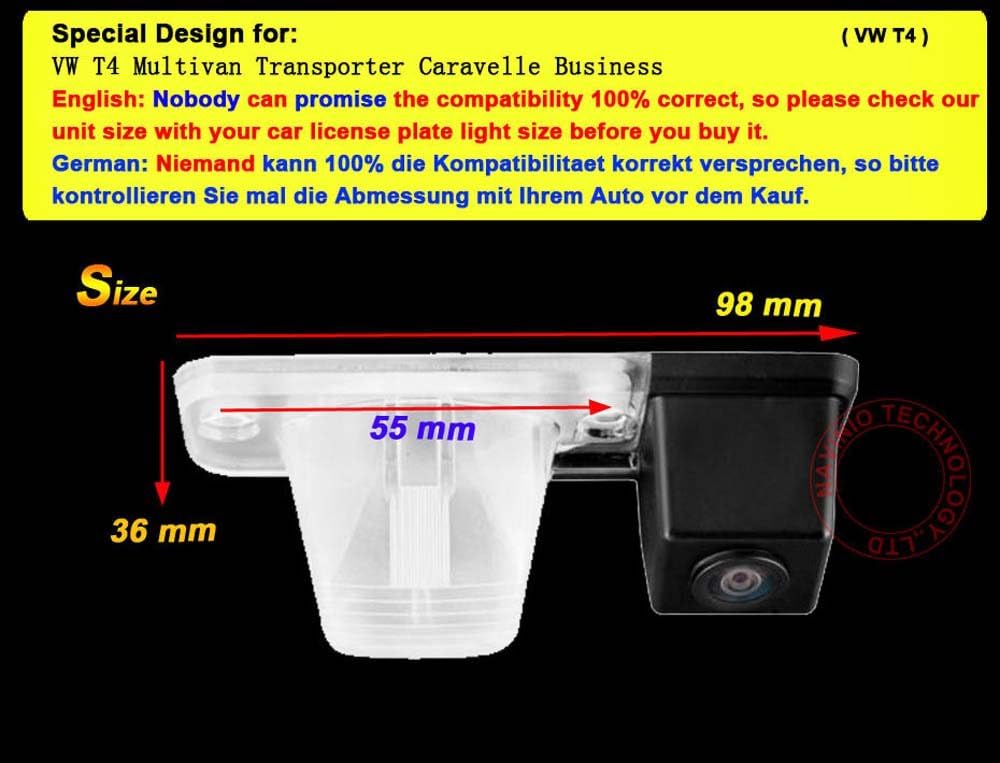

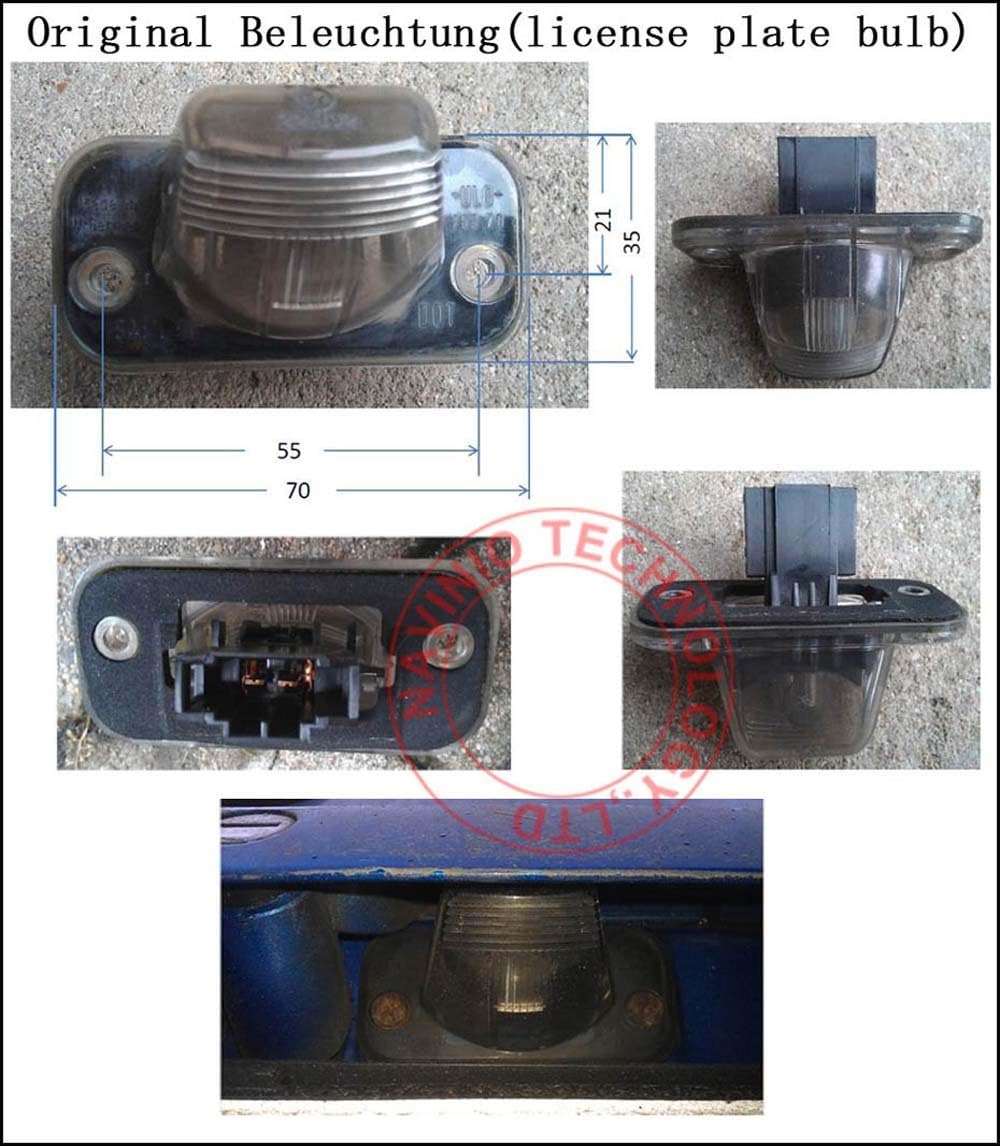

Notice: Please kindly check our unit size with your actual car license plate light firstly.
Installation location: Car license plate light hole, keep your car original number plate lamp or with our LED.

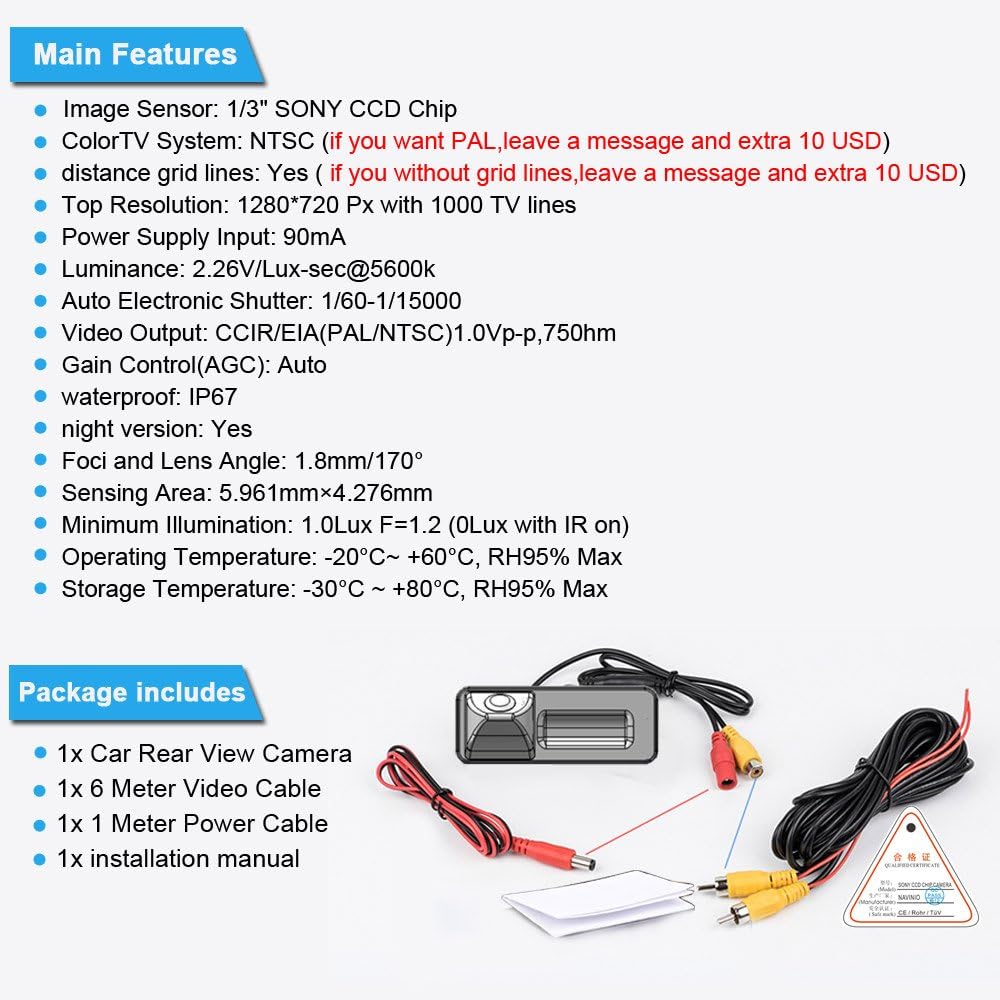

Technique Parameter:
1. TV system: NTSC (if you need PAL, please leave a message)
2. Resolution: 480/520 TV lines
3. Lens angle:170°
4. S/N ratio: more than 48db(AGC-OFF)
5. Video Color: Colorful
6. Video Output: 1.0Vp-p,75Ω
7. Image Device: 1/4 inch color
8. Sensing area: 5.78 x 4.19mm
9. Sync. system: internal
10.Power supply: DC 12V
11,White Balance: Auto
12.Waterproof Class: ip 66
13.Effective pixels: 628 x 586 Pixels
14.Electronic Shutter: 1/60-1/10000 seconds
15.Current Consumption: ≤150mA
16.Current consumption: 90mA Max
17.Storage temperature:-40°C to +60°C, RH95% Max
18.Minimum illumination:0.3Lux/F1.2
19.Operating Temperature:-30°C to +50°C, RH95%
Package Content:
1 x Car Rear View Camera
1 x 6M video cable
1 x 1M power cable
1 x User Manual
